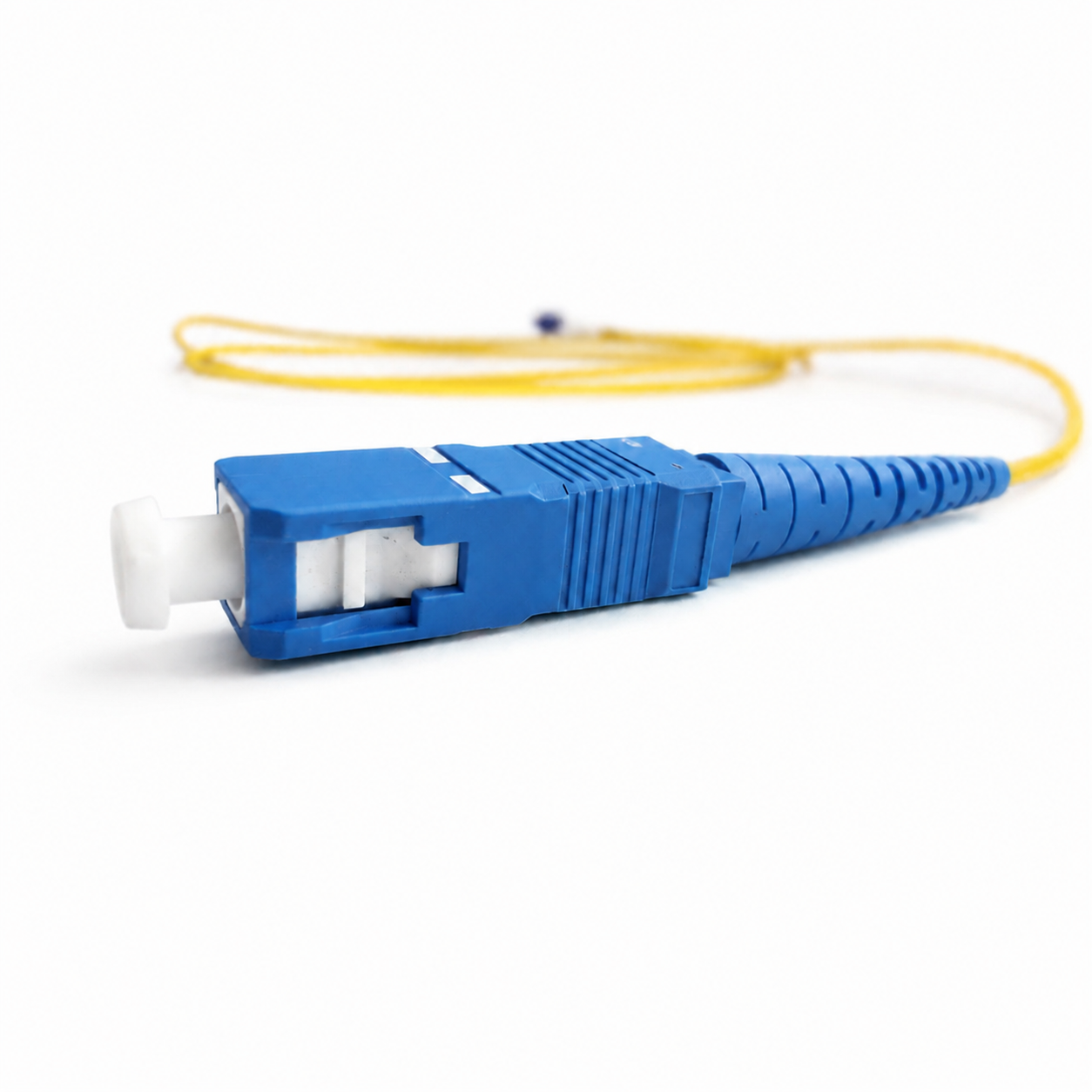

SC Fiber Optic Connector
SC fiber optic connectors use a keyed push-pull interface for repeatable connections in telecom access networks, FTTH distribution, CATV systems, and optical distribution frames. Single-mode UPC or APC and multimode UPC versions are available in simplex or duplex formats, with boots sized for buffered fiber and common cable diameters.
To identify the right model, confirm the assembly state, fiber and polish combination, connector format, cable or buffer diameter, boot style, and required quantity.
Product Information
Performance Specifications
| Performance Specifications | Value |
|---|---|
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 50 dB UPC / ≥ 60 dB APC / ≥ 25 dB multimode |
| Operating Temperature | -40°C to +75°C |
| Durability | 500 mating cycles; optical change ≤ 0.20 dB |
Performance Specifications
| Performance Specifications | Value |
|---|---|
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 50 dB UPC / ≥ 60 dB APC / ≥ 25 dB multimode |
| Operating Temperature | -40°C to +75°C |
| Durability | 500 mating cycles; optical change ≤ 0.20 dB |
Available Configurations
| Configuration | Available Options |
|---|---|
| Assembly State | Pre-Assembled • Unassembled |
| Fiber / Polish / Color | OS2 UPC (Blue) • OS2 APC (Green) • OM1 / OM2 UPC (Beige) • OM3 UPC (Aqua) • OM4 UPC (Heather Violet) • OM5 UPC (Lime Green) |
| Connector Format | Simplex • Duplex |
| Cable / Buffer Diameter | 0.9mm buffered fiber • 2.0mm cable • 3.0mm cable |
Configure Your Requirements
Not sure about every option? Select what you know and submit the RFQ. We’ll confirm the remaining details with you.
